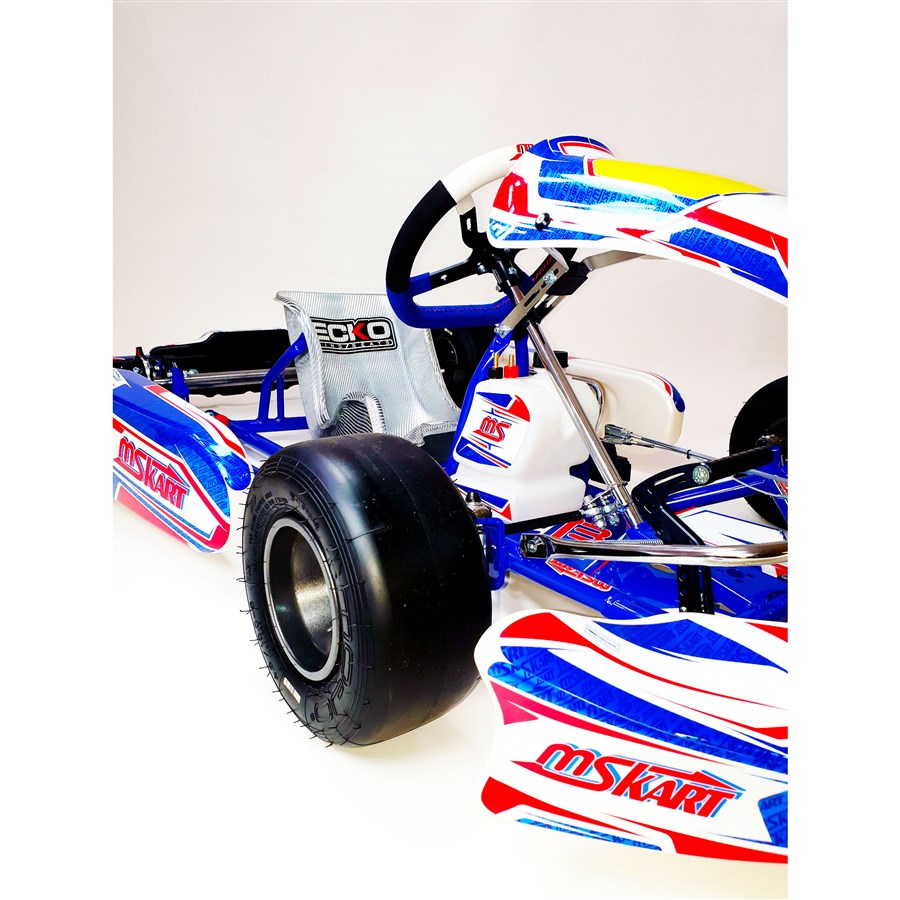

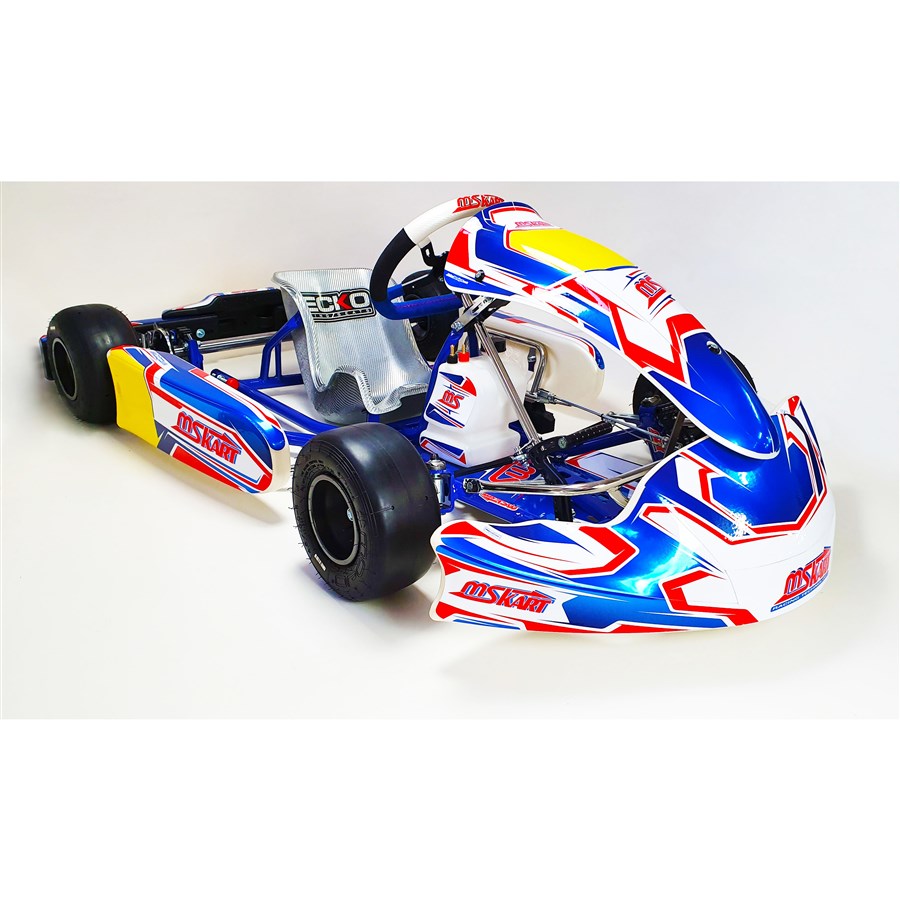

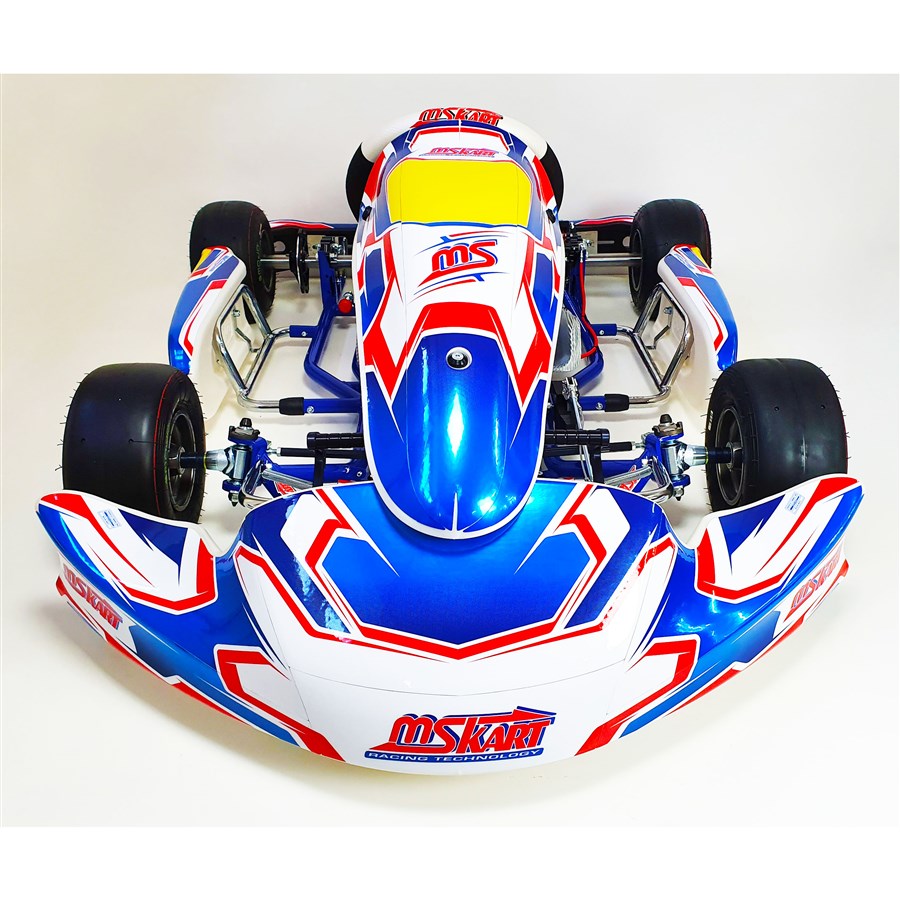

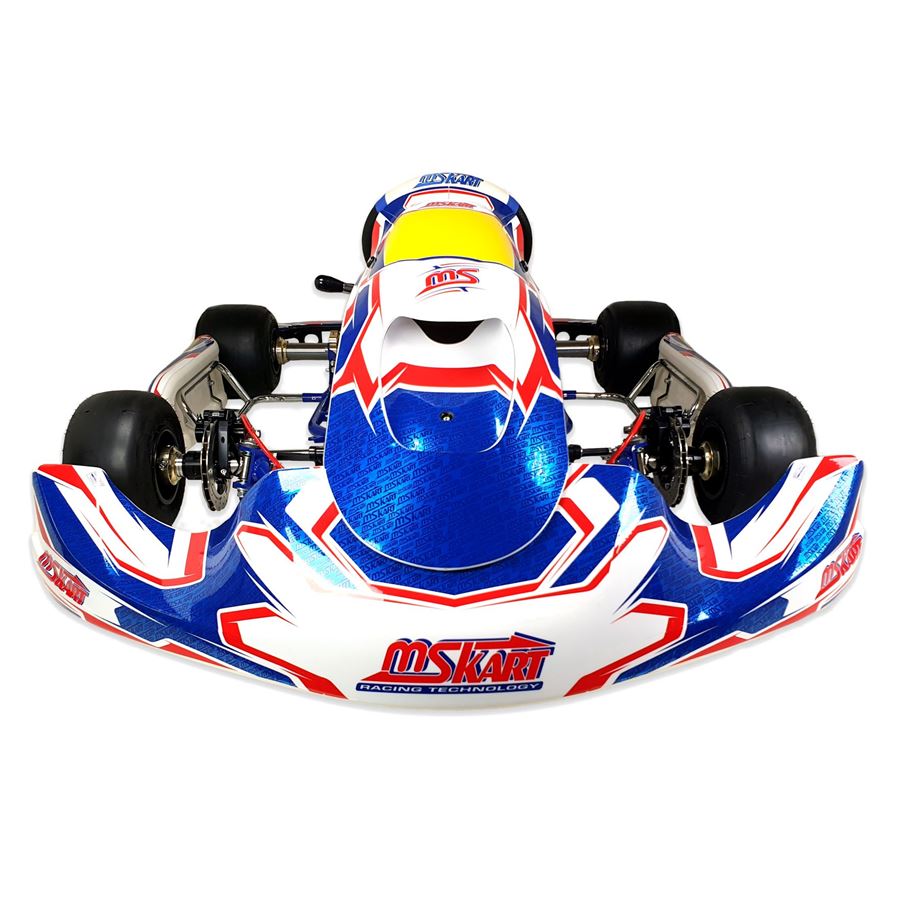

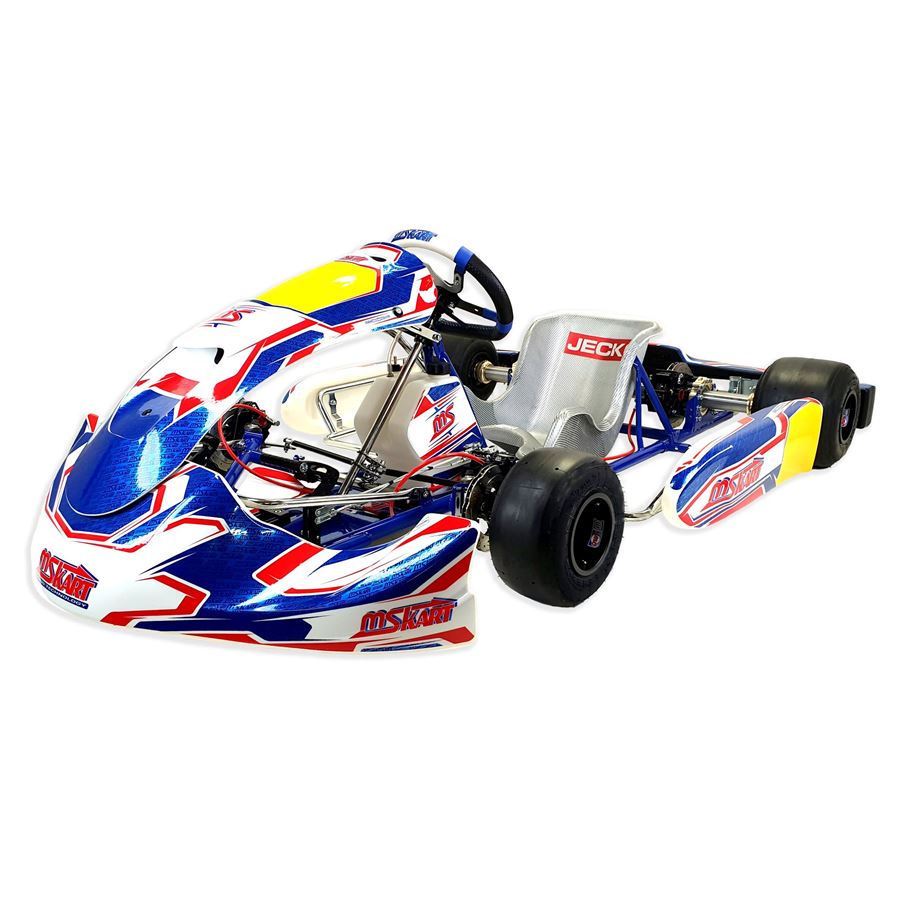

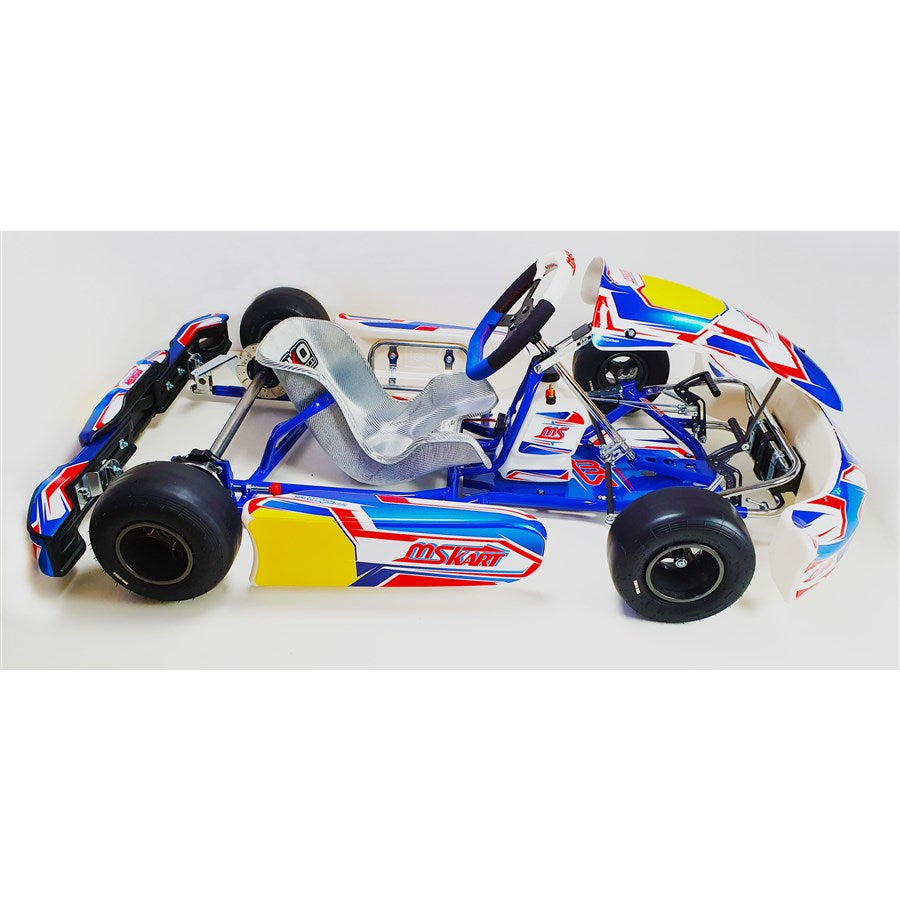

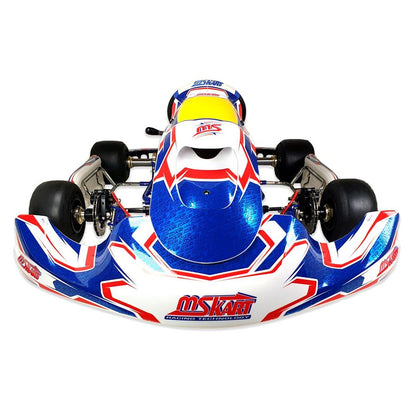

MS Kart Mini Blue Kite CIK 008 CH chassis

The new MINI Blue Kite chassis has international CIK-FIA homologation No. 008-CH-54 and it is made of high-quality chrome-molybdenum tubes with a diameter of 28 mm. The latest version of the frame with a wheelbase of 950 mm features a modified geometry in the front as well as a new type of rear axle bearing housing holders. This allows not only a more variable adjustment of the ground clearance of the rear axle, but also adjustment of the front axle height. The set up of camber castor of the front axle is very easy thanks to popular Sniper adjusters. A completely new K KART hydraulic brake system model MINI Racing with self-ventilated fix brake disc is mounted on the chassis. The KG MK20 CIK bodywork as well as the latest design of MS KART stickers provides the Blue Kite MINI chassis an attractive look.

Chassis technical data:

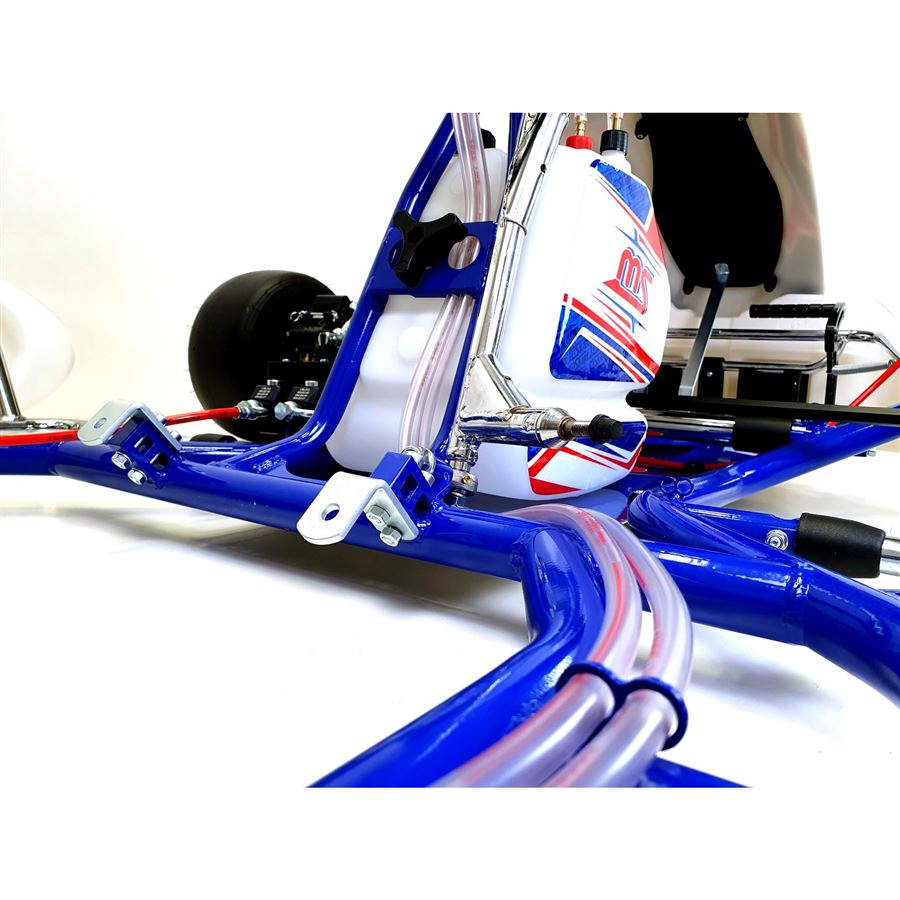

Frame: 25CrMo4 Ø 28 mm

Wheel base: 950 mm

Rear axle: Ø 30mm x 950 mm

Standard equipment:

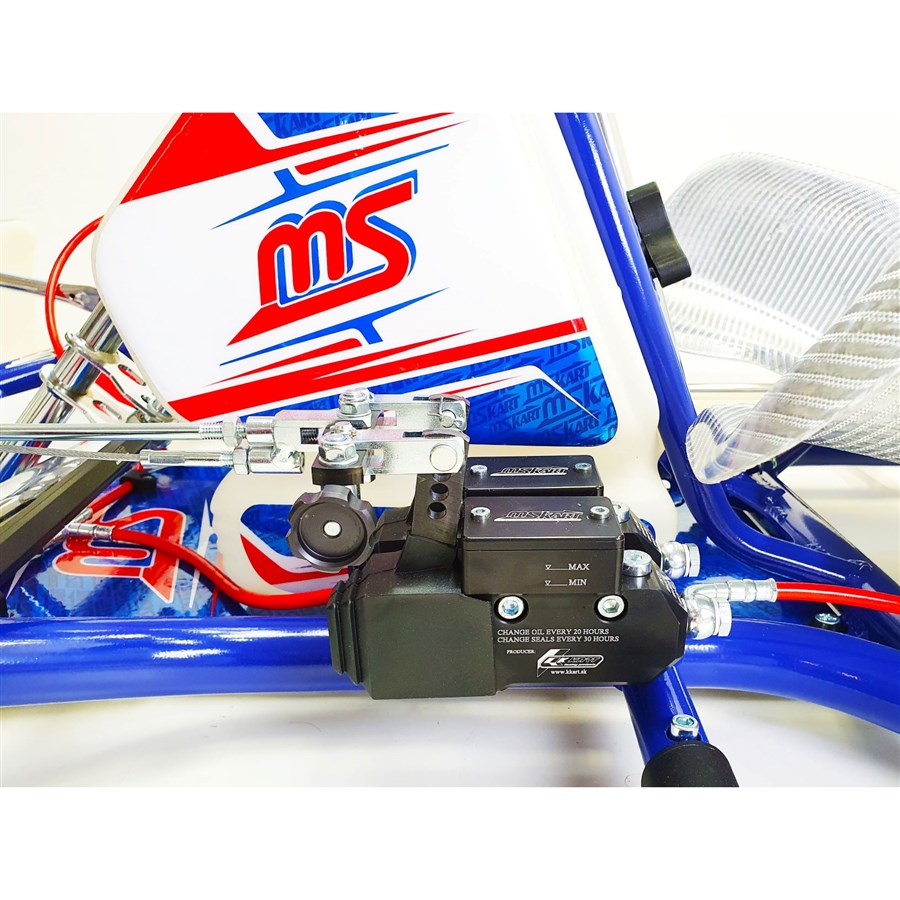

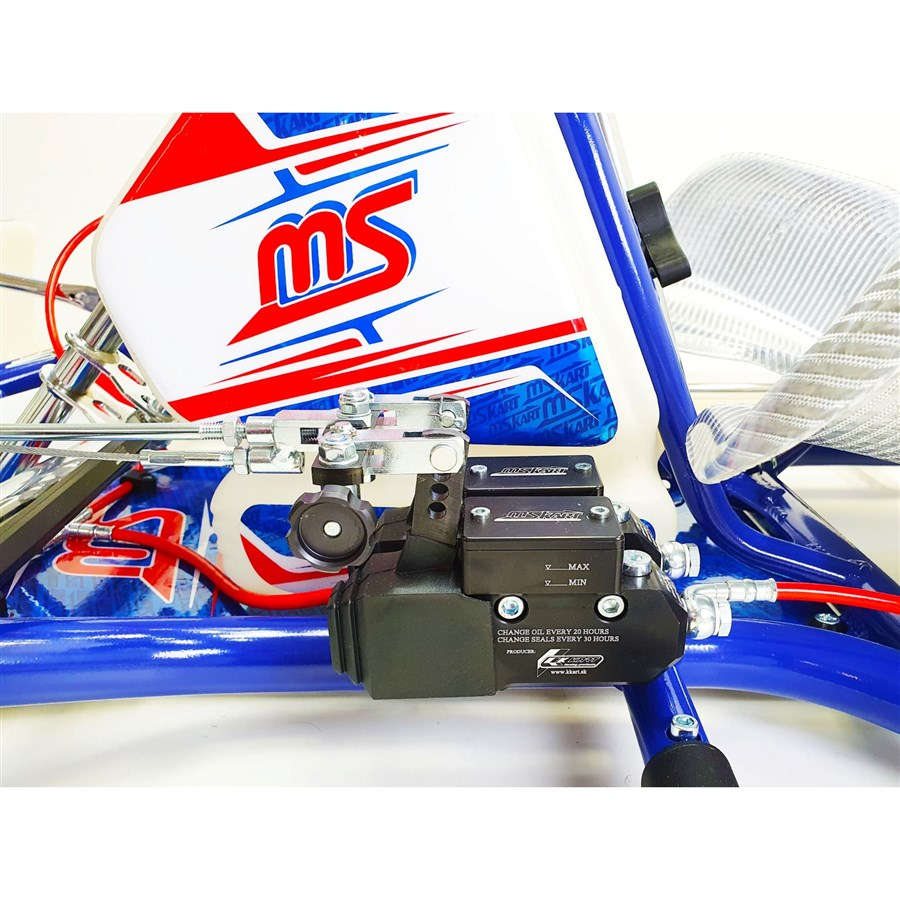

- hydraulic brake K KART MINI Racing with international homologation

  CIK-FIA No. 004-B2-47

- self-ventilated fix brake disc

- bodywork KG model MINI MK20 CIK

- rear plastic spoiler KG model HULK CIK

- Sniper adjusters

- adjustable front and rear ground clearance

- aluminum wheek rims

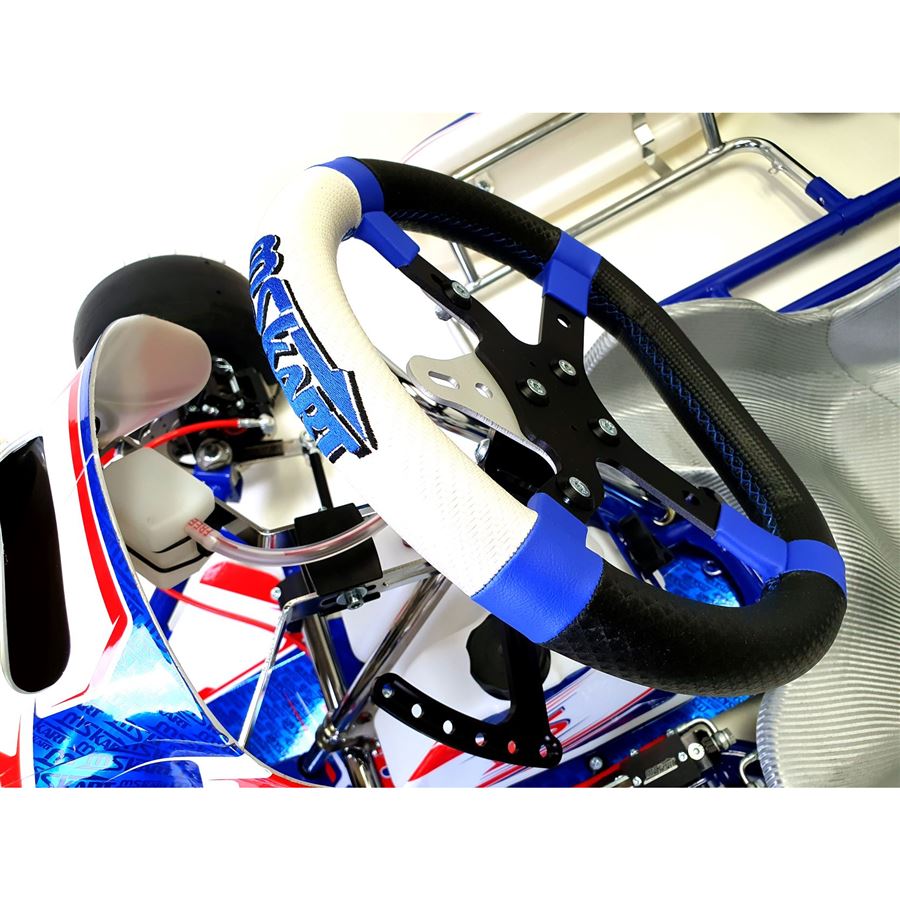

- MS KART steering wheel model KG M5 Ø 330 mm or Ø 345 mm

- laminate seat

- aluminum floor including MS KART sticker

Additional equipment:

- magnesium wheel rims

- JECKO seat

- rear plastic spoiler with adjustable width model KG TRIS CIK

- bodywork stickers MS KART MINI MK20

- aluminum foot rest

- aluminum pedals

- pedal extension kit model MINI

TIP: The innovative design of pedal extension kit (code 109Ui) allows simple and variable adjustment of the distance between pedals and the driver´s seat. The combination of the pedal kit with the latest model of aluminum MINI pedals (code 109Ie and 109Je) is a guarantee of optimal adjustment of the pedal position even for the smallest racers.

We also supply the MS MINI Bue Kite chassis as a complete go-kart with the ROTAX 125 Micro or Mini Max engine (code 030Gf) or with the TM MINI 60ccm engine (code 030H).
